Inline Folder Gluer
If you need customized products, Contact us !
Category:
Product Parameters
Model | G300-1224 | G300-1228 |
Max gluing speed | 250pcs/min | 220pcs/min |
Max feeding size | 2500*1200mm | 2900*1200mm |
Min gluing feeding size | 800*350mm | 800*350mm |
Corrugated board | 3ply, 5ply | 3ply, 5ply |
Total power | 66kw | 66kw |
Voltage | 380V, 50HZ, 3phase | 380V, 50HZ, 3phase |
Weight | 20tons | 21tons |
Dimension | 13600*4200*2900mm | 13600*4600*2900mm |
 | |||

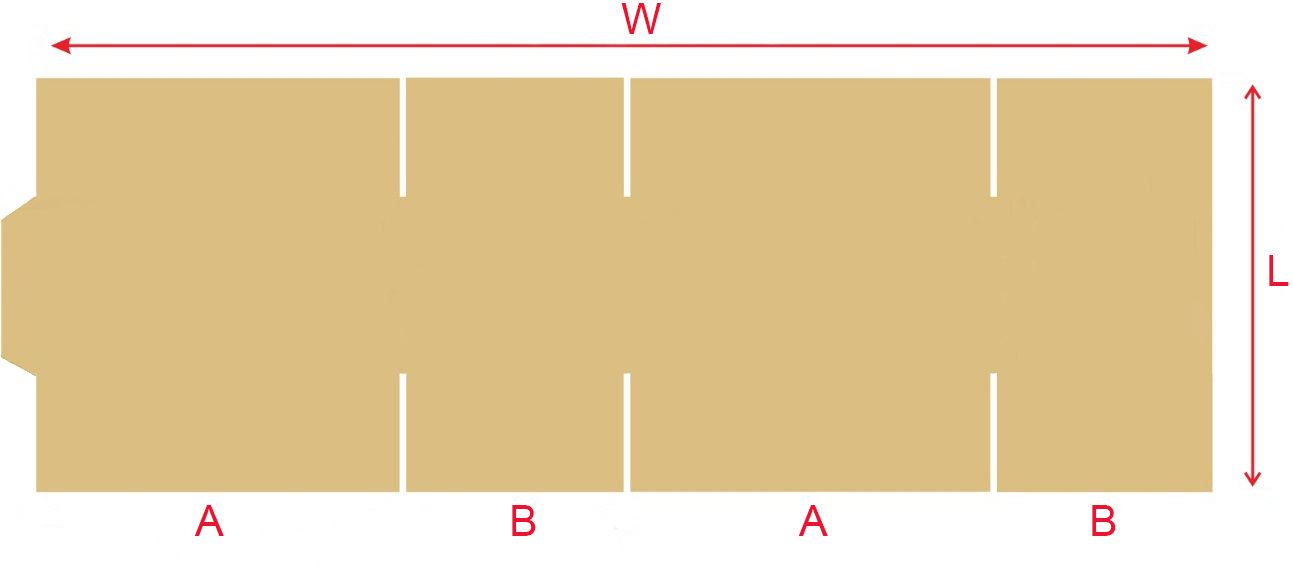

Item | Max | Min | |
Folding Gluing | W | 2460/2860 | 800 |
L | 1200 | 350 | |
A | 800 | 240 | |
B | 600 | 160 | |
Company Profile
As a professional exporter of flexo printer sltter, flexo inline folder gluer, folder gluer stitcher and corrugated board digital porinters since 2011 years.
The main machines divided as corrugated board digital printer, automatic flexo printer slotter, flexo inline folder gluer, automatic folder gluer stitcher, double feeder double piece folder gluer, double piece folder gluer stitcher, inline folder gluer stitcher, automatic flatbed die cutter, semi auto flatbed die cutter, hot foil stamper and etc.
Sincerely wecome wordwide clients to us for the visits and cooperation.
