Two Piece Joint Stitcher
If you need customized products, Contact us !
Product Parameters
Model | DS-2600 | DS-3000 |
Max size (A+B) * 2 | 5200mm | 6000mm |
Min size (A+B) * 2 | 1100mm | 1100mm |
Max length (A) | 2480mm | 2880mm |
Min length (A) | 400mm | 400mm |
Max width (B) | 2480mm | 2880mm |
Min width (B) | 120mm | 120mm |
Min height (C+D+C) | 350mm | 350mm |
Max machine speed | 500 stitches/min | 500 stitches/min |
Stitching distance | 30-120mm | 30-120mm |
Stitching quantity | 2-99 stitches | 2-99 stitches |
Corrugated materials | 5-15mm | 5-15mm |
Total installed power | 7.6KW | 7.6KW |
Voltage supply | 380V, 50HZ, 3phase | 380V, 50HZ, 3phase |
Machine weight | 3500kg | 4200kg |
Model | DS-3600 | DS-4000 |
Max size (A+B) * 2 | 7200mm | 8000mm |
Min size (A+B) * 2 | 1100mm | 1100mm |
Max length (A) | 3480mm | 3880mm |
Min length (A) | 400mm | 400mm |
Max width (B) | 3480mm | 3880mm |
Min width (B) | 120mm | 120mm |
Min height (C+D+C) | 350mm | 350mm |
Max machine speed | 500 stitches/min | 500 stitches/min |
Stitching distance | 30-120mm | 30-120mm |
Stitching quantity | 2-99 stitches | 2-99 stitches |
Corrugated materials | 5-15mm | 5-15mm |
Total installed power | 7.6KW | 7.6KW |
Voltage supply | 380V, 50HZ, 3phase | 380V, 50HZ, 3phase |
Machine weight | 4800kg | 5000kg |
Company Profile
As a professional exporter of flexo printer sltter, flexo inline folder gluer, folder gluer stitcher and corrugated board digital porinters since 2011 years.
The main machines divided as corrugated board digital printer, automatic flexo printer slotter, flexo inline folder gluer, automatic folder gluer stitcher, double feeder double piece folder gluer, double piece folder gluer stitcher, inline folder gluer stitcher, automatic flatbed die cutter, semi auto flatbed die cutter, hot foil stamper and etc.
Sincerely wecome wordwide clients to us for the visits and cooperation.
Recommended Products
Automatic Folder Gluer Stitcher
Automatic Folder Gluer Stitcher applied in corrugated boxes packaging folding gluing stitching. It is with order memory system and servo motors controlling operation system.
Automatic Flexo Printer Slotter
Flexo Printer Slotter Die Cutter applied to corrugated box flexo printing slotting die cutting production. The gearbox automatic lead edge feeding. Printing units equipped with vacuum transfer. Eight axis slotter design. Independent IR dryer and coating unit.
Inline Folder Gluer Stitcher applied in flexo printer slotter inline folder gluer stitcher. It’s a complete equipment to set it for the corrugated box flexo printing, slotting, folding gluing, stitching and shaping by computerized system.

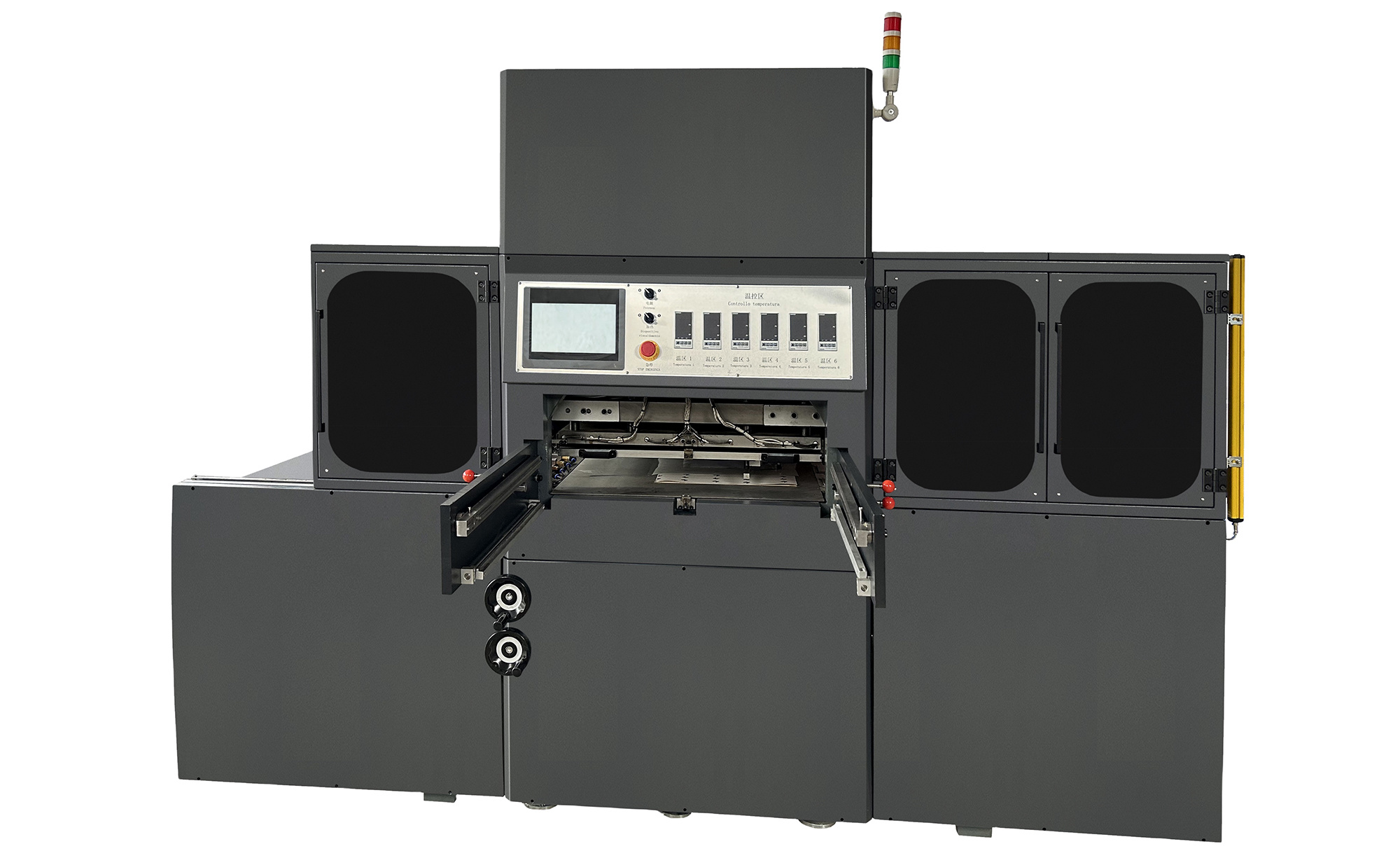

Two Piece Joint Stitcher for the corrugated boards stitching machine with touch screen operation. The stitching distance can be 30-120mm. The stitching speed is 500 stitches/minute.
Double Feeder Double Piece Folder Gluer
Double Feeder Double Piece Folder Gluer with double feeding system, two piece joint folding gluing machine applied in corrugated boxes.
Two Piece Folder Gluer used in the two piece joint corrugated boards folding gluing machine with cold, hot gluing system and touch screen operation system.
